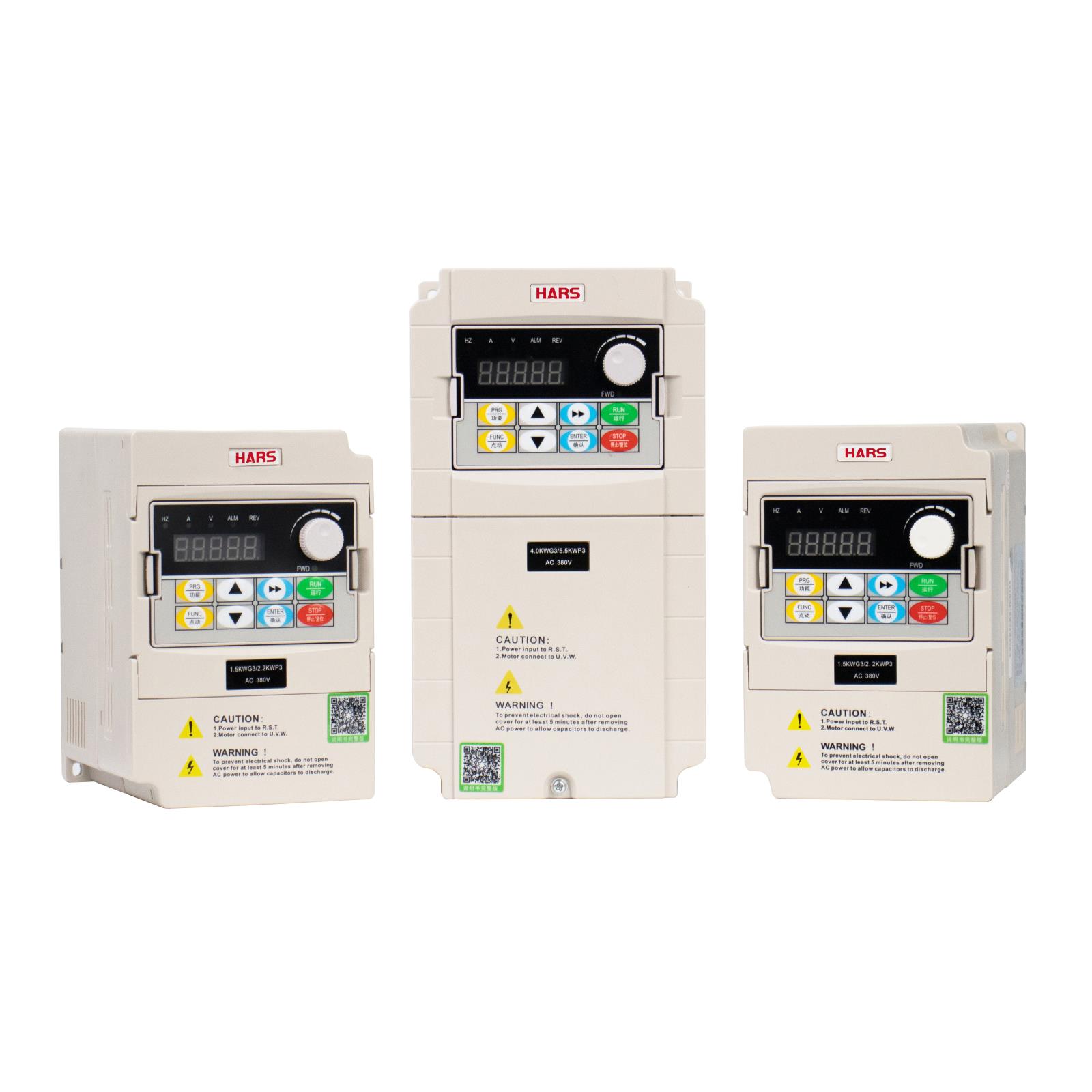

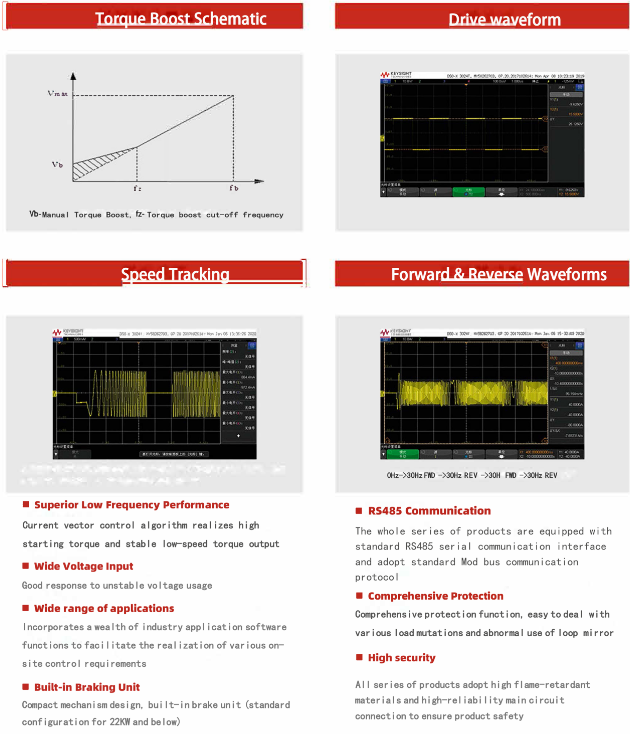

■Excellent low frequency performance
■Wide voltage input
■Widely used
■Built-in automatic unit
■RS485 communication
■Comprehensive protection
■High security
HS710 iron case dimensions and weight
Model | A (mm) | B (mm) | H (mm) | W (mm) | D (mm) | Mounting holes (mm) | Net Weight (KG) | Gross Weight (KG) | The base |
Installation dimensions | The peripheral size | ||||||||
45KW 380V | 235 | 485 | 510 | 320 | 248 | 8 | 23 | 25 | ∕ |
55KW 380V | 235 | 485 | 510 | 320 | 248 | 8 | 23 | 25 | ∕ |
75KW 380V | 240 | 635.5 | 655 | 377 | 267 | 8 | 35 | 40 | ∕ |
90KW 380V | 240 | 635.5 | 655 | 377 | 267 | 8 | 37 | 42 | ∕ |
110KW 380V | 240 | 635.5 | 655 | 377 | 267 | 8 | 37 | 42 | ∕ |
132KW 380V | 320 | 730 | 750 | 495 | 325 | 10 | 60 | 70 | A |
160KW 380V | 320 | 730 | 750 | 495 | 325 | 10 | 63 | 73 | A |
185KW 380V | 320 | 730 | 750 | 495 | 325 | 10 | 63 | 73 | A |
200KW 380V | 460 | 980 | 1005 | 632 | 440 | 13/16 | 117 | 137 | B |
220KW 380V | 460 | 980 | 1005 | 632 | 440 | 13/16 | 117 | 137 | B |
250KW 380V | 460 | 980 | 1005 | 632 | 440 | 13/16 | 117 | 137 | B |
280KW 380V | 460 | 980 | 1005 | 632 | 440 | 13/16 | 120 | 140 | B |
315KW 380V | 600 | 1210 | 1250 | 800 | 450 | 13/16 | 174 | 205 | C |
355KW 380V | 600 | 1210 | 1250 | 800 | 450 | 13/16 | 174 | 205 | C |
400KW 380V | 600 | 1210 | 1250 | 800 | 450 | 13/16 | 179 | 210 | C |
450KW 380V | 600 | 1210 | 1250 | 800 | 450 | 13/16 | 181 | 212 | C |
500KW 380V | 600 | 1210 | 1250 | 800 | 450 | 13/16 | 181 | 212 | C |
HS710 plastic case dimensions and weight
Model | A (mm) | B (mm) | H (mm) | W (mm) | D (mm) | Mounting holes (mm) | Net Weight (KG) | Gross Weight (KG) | The base |
Installation dimensions | The peripheral size | ||||||||
4.0KW 220V | 131 | 229 | 239 | 140 | 177 | 5 | 2.8 | 3.2 | ∕ |
5.5KW 220V | 131 | 229 | 239 | 140 | 177 | 5 | 2.8 | 3.2 | ∕ |
0.75KW 380V | 89 | 140 | 151 | 100 | 133 | 5 | 1.1 | 1.3 | ∕ |
1.5KW 380V | 89 | 140 | 151 | 100 | 133 | 5 | 1.2 | 1.4 | ∕ |
2.2KW 380V | 89 | 140 | 151 | 100 | 133 | 5 | 1.2 | 1.4 | ∕ |
4.0KW 380V | 108 | 203 | 215 | 120 | 154 | 5 | 2.8 | 3.2 | ∕ |
5.5KW 380V | 108 | 203 | 215 | 120 | 154 | 5 | 2.8 | 3.3 | ∕ |
7.5KW 380V | 130 | 237 | 249 | 143 | 177 | 5 | 2.9 | 3.4 | ∕ |
11KW 380V | 130 | 237 | 249 | 143 | 177 | 5 | 3.0 | 3.7 | ∕ |
15KW 380V | 189 | 306 | 320 | 205 | 205 | 6 | 5.8 | 6.5 | ∕ |
18.5KW 380V | 189 | 306 | 320 | 205 | 205 | 6 | 5.8 | 6.7 | ∕ |
22KW 380V | 189 | 306 | 320 | 205 | 205 | 6 | 5.8 | 6.8 | ∕ |
30KW 380V | 264 | 388 | 408 | 288 | 210 | 6 | 10.6 | 12 | ∕ |
37KW 380V | 264 | 388 | 408 | 288 | 210 | 6 | 10.6 | 12 | ∕ |
Dimensions of the HS710 base
Base selection code | Apply to power | H(mm) | W(mm) | D(mm) |
A | 132KW--185KW | 670 | 495 | 400 |
B | 200KW--280KW | 620 | 635 | 420 |
C | 315KW--500KW | 550 | 800 | 450 |
![RZ]K901V]7HB_{HQ{{%DT[5.jpg](/upload/202109/27/202109271730536679.jpg "RZ]K901V]7HB_{HQ{{%DT[5.jpg")
Basic configuration diagram
Frequency converter wiring part is divided into the main loop and control loop. The user can lift the cover of the case to see the main loop terminal and the control loop terminal. The user must connect the wiring loop accurately according to the following.
HS-710Technical specifications
Project | Technical specifications | ||
enter | Rated voltage, frequency | Three-phase AC380V;50/60Hz Simplex AC220V;50/60Hz | |
Allowable voltage range | Three-phase AC360V～450V Simplex AC190V～250V | ||
Output | Voltage | 0～460V 0～260V | |
frequency | Low frequency mode：0～300Hz High frequency mode：0～3000Hz | ||
Overload capacity | Model G:110% long-term 120% 22 minutes 150% 1 minute P type machine: 105% long-term 120% 8 minutes 150% 1 second | ||
way to control | V/F control, advanced V/F control, V/F separation control, current vector contro | ||
Control characteristics | Frequency setting resolution | Analog input | 0.1% of maximum output frequency |
Digital setting | 0.01Hz | ||
Frequency accuracy | Analog input | Within 0.2% of the maximum output frequency | |
Digital input | Set within 0.01% of output frequency | ||
V/F control | V/F curve Voltage frequency characteristic
| The reference frequency is arbitrarily set at 5～600Hz, and the multi-point V/F curve can be set arbitrarily. You can also choose constant torque, low-reduction torque 1, low-reduction torque 2, square torque and other fixed curves | |
Torque boost | Manual setting: 0.0～30.0% of rated output Automatic boost: automatically determine the boost torque according to the output current and combined with the motor parameters | ||
Automatic current limit and pressure limit | Whether in the process of acceleration, deceleration or stable operation, it automatically detects the stator current and voltage of the motor, and suppresses it within the allowable range according to a unique algorithm, minimizing the possibility of system fault tripping | ||
Control characteristics | Sensorless vector control | Voltage frequency characteristics | Automatically adjust the output voltage-frequency ratio according to motor parameters and unique algorithms |
Torque characteristics | Starting torque: 150% rated torque at 3.0Hz (VF control) 180% rated torque at 0.5Hz (no PG current vector control, magnetic flux vector control) 180% rated torque at 0.05Hz (with PG current vector control) Steady-state accuracy of operating speed: ≤±0.2% of rated synchronous speed Speed fluctuation: ≤±0.5% of rated synchronous speed Torque response: ≤50ms with PG vector control, without PG vector control, magnetic flux vector control ≤20ms | ||
Motor parameter self-determination | Without any restriction, the automatic detection of parameters can be completed under the static and dynamic conditions of the motor to obtain the best control effect | ||
Current and voltage suppression | Full-process current closed-loop control, completely avoid current impact, with perfect over-current and over-voltage suppression function | ||
Undervoltage suppression during operation | Especially for users with low grid voltage and frequent fluctuations in grid voltage, the system can maintain the longest possible operating time according to the unique algorithm and residual energy distribution strategy even if the voltage is lower than the allowable voltage range. | ||
Typical function | Multi-speed and swing frequency operation | 16-segment programmable multi-speed control, multiple operating modes are available. Swing frequency operation: preset frequency, center frequency can be adjusted, state memory and recovery after power failure. | |
PID control RS485 communication | Built-in PID controller (frequency can be preset). Standard configuration RS485 communication function, multiple communication protocols are optional, with linkage and synchronization control function. | ||
Frequency setting | Analog input | DC voltage 0～10V, DC current 0～20mA (upper and lower limits are optional) | |
Digital input | Operation panel setting, RS485 interface setting, UP/DW terminal control, also can be set in multiple combinations with analog input | ||
output signal | Digital output | 2 OC outputs and 1 fault relay output (TA, TB, TC), up to 16 meaning options | |
Analog output | 2 channels of analog signal output, the output range is flexibly set between 0～20mA or 0～10V, which can realize the output of physical quantities such as set frequency and output frequency | ||
Automatic voltage regulation operation | Three modes of dynamic voltage regulation, static voltage regulation and unregulated voltage can be selected according to needs to obtain the most stable operation effect | ||
Acceleration and deceleration time setting | 0.1s～3600min can be set continuously, S-type and linear mode are optional | ||
brake | Dynamic braking | The initial voltage, hysteresis voltage and dynamic braking rate of dynamic braking are continuously adjustable | |
DC braking | Start frequency of DC braking at stop: 0.00～【F0.11】Upper limit frequency Braking time: 0.0～100.0s; braking current: 0.0%～150.0% of rated current
| ||
Flux brake | 0～100 0: invalid | ||
Low noise operation | The carrier frequency is continuously adjustable from 1.0KHz to 16.0KHz to minimize motor noise | ||
Speed tracking speed Restart function | It can realize the smooth restart of the motor in operation and the restart function after instantaneous power failure | ||
counter | One internal counter for easy system integration | ||
Run function | Upper and lower limit frequency setting, frequency jump operation, reverse operation limit, slip frequency compensation, RS485 communication, frequency increase and decrease control, fault self-recovery operation, etc. | ||
Voltage | Simplex | Three-phase | |
220V | 220V(240V) | 380V(415V) | |
power(KW) | Current(A) | Current(A) | Current(A) |
0.4 | 2.3 | 2.3 | - |
0.75 | 4 | 4 | 2.1 |
1.5 | 7 | 7 | 3.8 |
2.2 | 9.6 | 9.6 | 5.1 |
4 | 17 | 17 | 8.5 |
5.5 | 25 | 25 | 13 |
7.5 | - | - | 16 |
11 | - | - | 24 |
15 | - | - | 32 |
18.5 | - | - | 36 |
22 | - | - | 44 |
30 | - | - | 58 |
37 | - | - | 70 |
45 | - | - | 90 |
55 | - | - | 110 |
75 | - | - | 152 |
93 | - | - | 172 |
1 10 | - | - | 205 |
132 | - | - | 253 |
160 | - | - | 304 |
185 | - | - | 340 |
200 | - | - | 380 |
220 | - | - | 426 |
250 | - | - | 465 |
280 | - | - | 520 |
315 | - | - | 585 |
355 | - | - | 650 |
400 | - | - | 725 |
450 | - | - | 820 |
500 | - | - | 935 |
