■Low cost and compact structure
■Dual analog input
■Overcurrent, overvoltage, overload, phase loss, short circuit protection
■Simple PLC function
■Built-in PID software function
■Output voltage regulation AVR function
Model | Power | Power supply | Output current (A) | Overall dimension L*W*H (mm) | Installation dimension L * W -mounting screw |
0.4S1-220V | 0.4KW | Single-phase AC 200V-240V 50Hz/60Hz | 2.1 | 170*79*127 | 160*60.5-M5 |
0.75S1-220V | 0.75KW | 3.8 | |||
1.5S1-220V | 1.5KW | 7 | |||
2.2S1-220V | 2.2KW | 9.0 | 187*86*144 | 173*68-M4 | |
3.0S1-220V | 3.0KW | 13 | 216*101*151 | 204*83.5-M4 | |
4.0S1-220V | 4.0KW | 15 | 237*111*168 | 216*88-M4 | |
5.5S1-220V | 5.5KW | 20 | |||
0.4S3-220V | 0.4KW | Three-phase AC 200V-240V 50Hz/60Hz
| 2.1 | 170*79*127 | 160*60.5-M5 |
0.75S3-220V | 0.75KW | 3.8 | |||
1.5S3-220V | 1.5KW | 7 | |||
2.2S3-220V | 2.2KW | 9.0 | 187*86*144 | 173*68-M4 | |
3.0S3-220V | 3.0KW | 13 | 216*101*151 | 204*83.5-M4 | |
4.0S3-220V | 4.0KW | 15 | 237*111*168 | 216*88-M5 | |
5.5S3-220V | 5.5KW | 20 | |||
0.4G3-380V | 0.4KW | Three-phase AC 340V-440V 50Hz/60Hz | 1.5 | 170*79*127 | 160*60.5-M5 |
0.75G3-380V | 0.75KW | 2.1 | |||
1.5G3-380V | 1.5KW | 3.8 | |||
2.2G3-380V | 2.2KW | 5.1 | 187*86*144 | 173*68-M4 | |
3.0G3-380V | 3.0KW | 7.1 | |||
4.0G3-380V | 4.0KW | 9.0 | 216*101*151 | 204*83.5-M4 | |
5.5G3-380V | 5.5KW | 12.6 | |||
| 7.5G3-380V | 7.5KW | 16.1 | 237*111*168 | 216*88-M5 | |
11G3-380V | 11KW | 25.0 | 249*143*172 | 237*130-M5 |

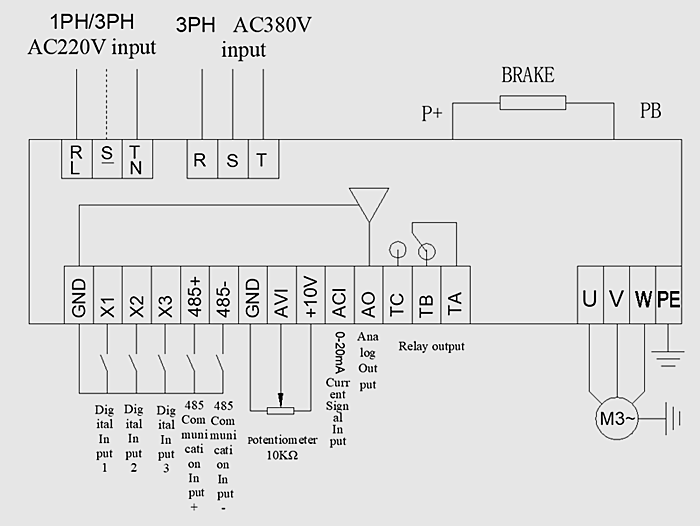

HS320

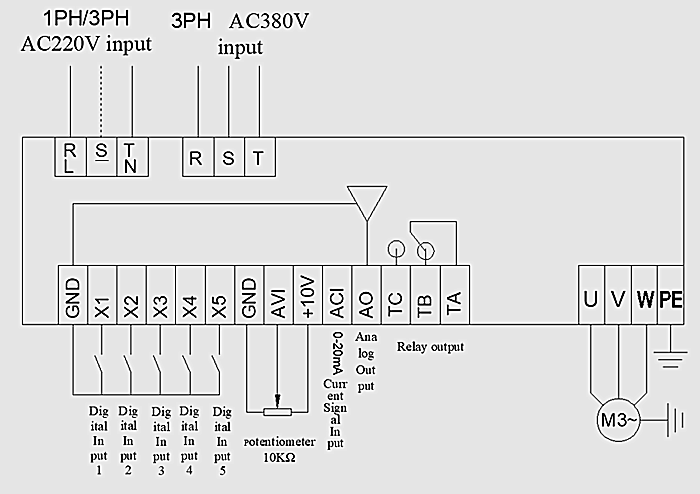

HS321
