■Excellent performance
■RS485 communication
■Wide voltage input
■Complete protection performance
■Widely used
■High security
■Built-in brake unit
■ Performance is remarkable
Current vector control algorithm, strong load capacity, fast response speed, wide speed range
■ Wide voltage input
When the power grid voltage and frequency fluctuation, automatically adjust the output, small impact on the motor and production machinery;
■ Widely used
Covers a variety of typical load application functions to meet the needs of various applications;
■ Built-in brake unit
Compact, built-in brake unit (18.5KW and below standard)
■ RS485 communication
Standard RS485 serial communication interface, standard MODBUS communication protocol;
■ Complete protection performance
Overcurrent, overvoltage, input phase loss, output phase loss, output imbalance detection and other protection functions
■ High safety
Mature and reliable structure design, high flame retardant material, to ensure product safety.

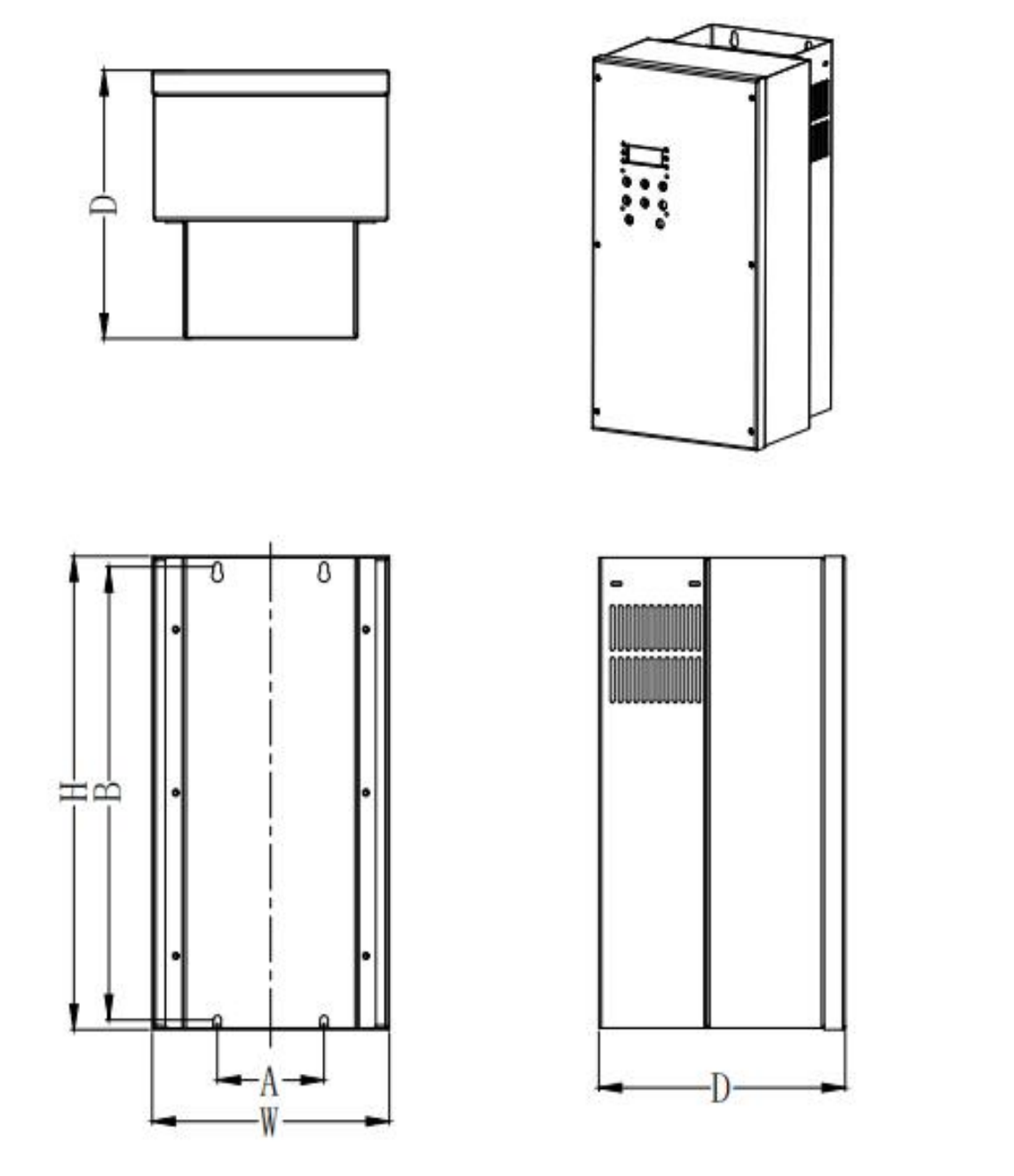

Inputpower supply | model | power | Output current (A) | A （MM） | B （MM） | H （MM） | W （MM） | D （MM） | Installation hole （MM） |
Installation size | Peripheral dimensions | ||||||||
三相交流 340V-440V 50Hz/60Hz | 4.0G3-380V | 4.0KW | 9 | 82.5 | 273 | 280 | 145 | 152 | 4.5 |
5.5G3-380V | 5.5KW | 13 | |||||||
7.5G3-380V | 7.5KW | 17 | 82 | 319 | 333.5 | 182 | 189 | 6 | |
11G3-380V | 11KW | 25 | |||||||
15G3-380V | 15KW | 32 |
116 |
375 |
392 |
227 |
193 |
6 | |
18.5G3-380V | 18.5KW | 37 | |||||||
22G3-380V | 22KW | 45 | |||||||
